No oil in the compressor supplied
(QP15XD-1237)

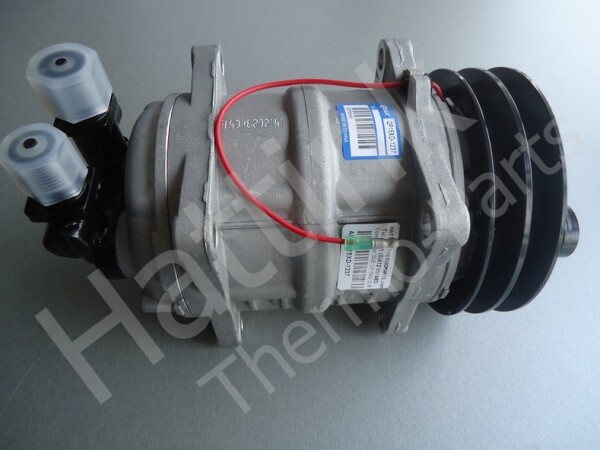

Description A/C Compressor
QP15XD OR Vertical 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a
Oil Quantity 0 cc

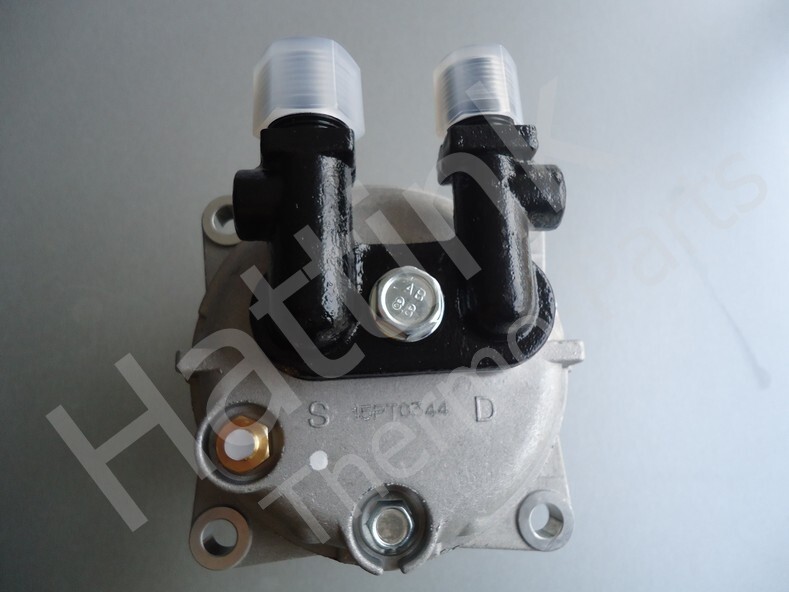

Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF

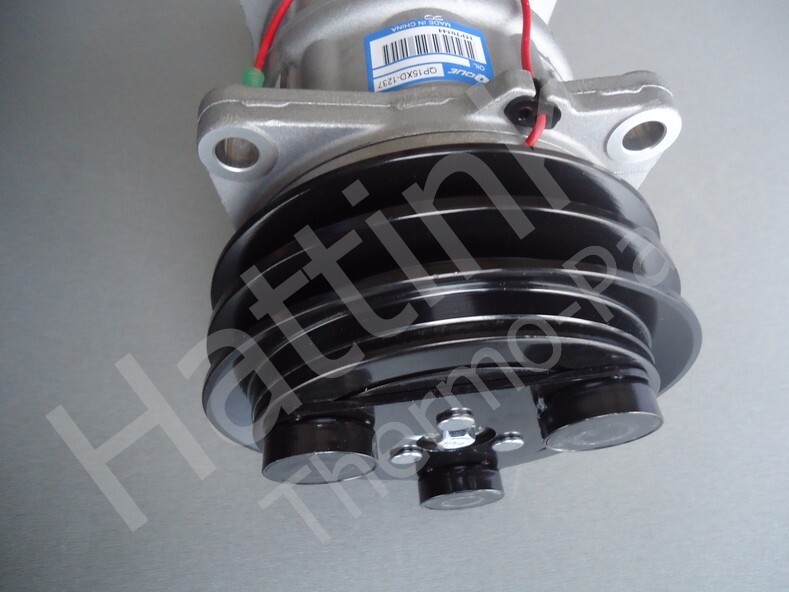

Pulley Diameter Ø 135 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type QP15XD
Koppeling type: 3 Eye
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Made in China
Net 7400 gram
Interchangeable with AC-40430136
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
AC-40430136/ AC40430136/ 40430136

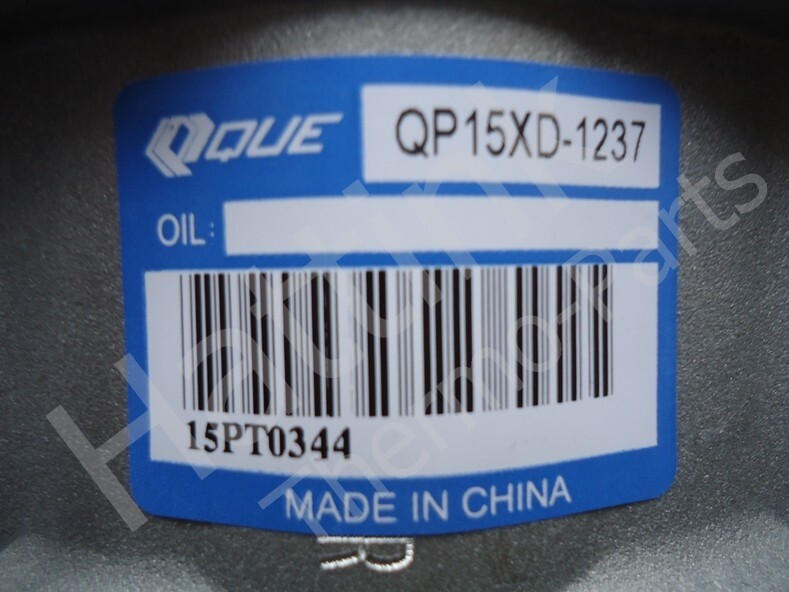

QP15XD-1237/ AC-QP15XD-1237/ ACQP15XD-1237/ ACQP15XD1237
COMP. QUE QP-15XS V-O 2A 135 MM 12 V. R-404-A
