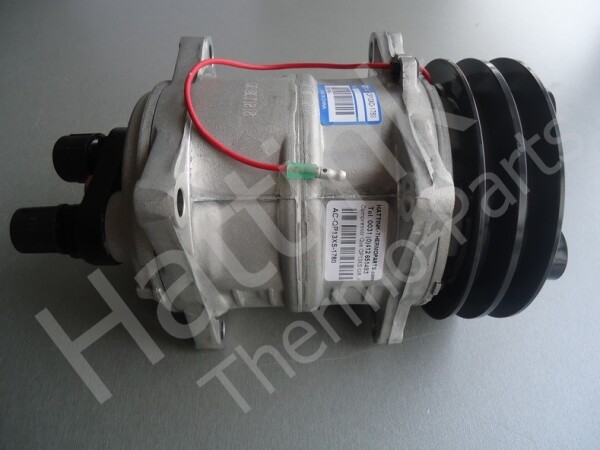

This Compressor version
(QP13XS-1780)
Always supplied without crankcase oil
Possibly the correct oil separately when ordering
Air conditioning pump
QP13XD OR Horizontal 12V 5"1/4 2G A
Contents 162.9 cc
Refrigerant R404a /R134a/R1234yf

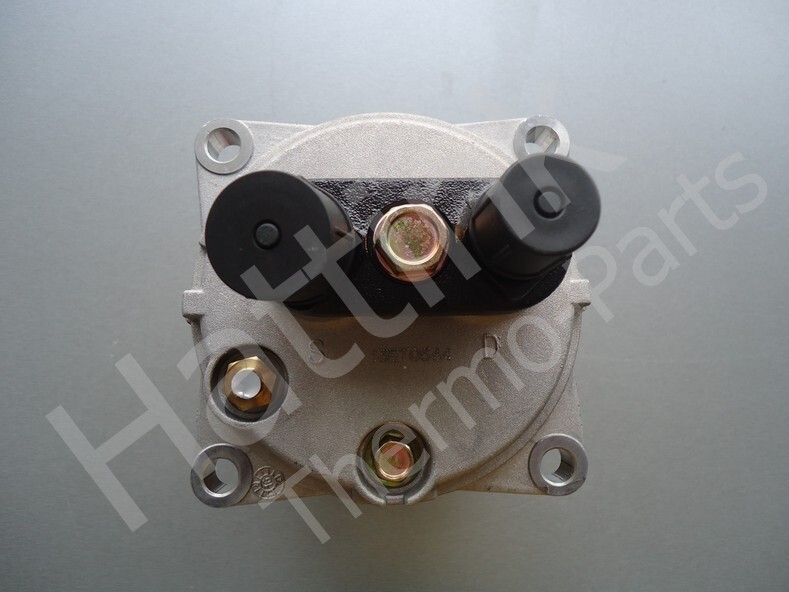

Suction side connection 7/8" 14UNF
Pressure side connection 3/4" 16UNF
Coupling type: 3 Eye

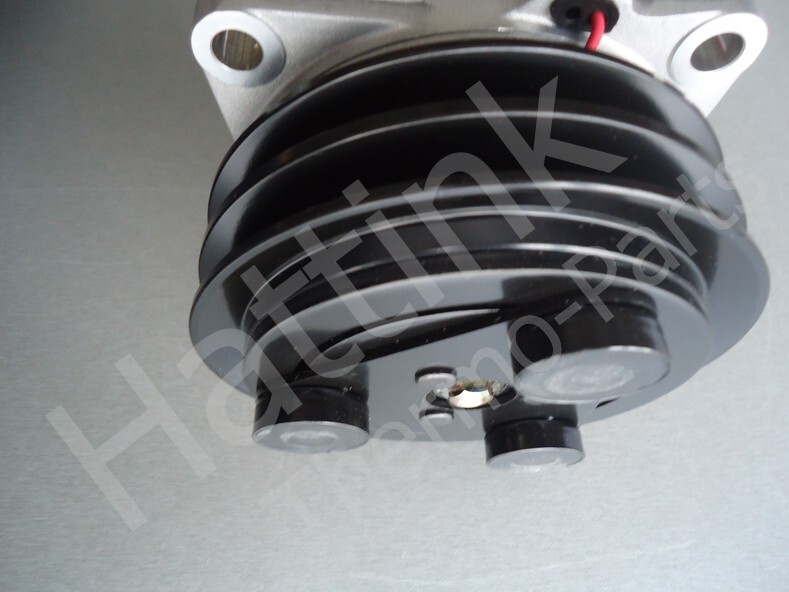

Poelly DiameterØ 135 mm
Voltage 12V
Number of grooves 2 "A"
Groove width 12.7 mm
Compressor Type QP13XS
Fittings OR O.
W (mm) 39.5mm
C (mm) 83.3mm

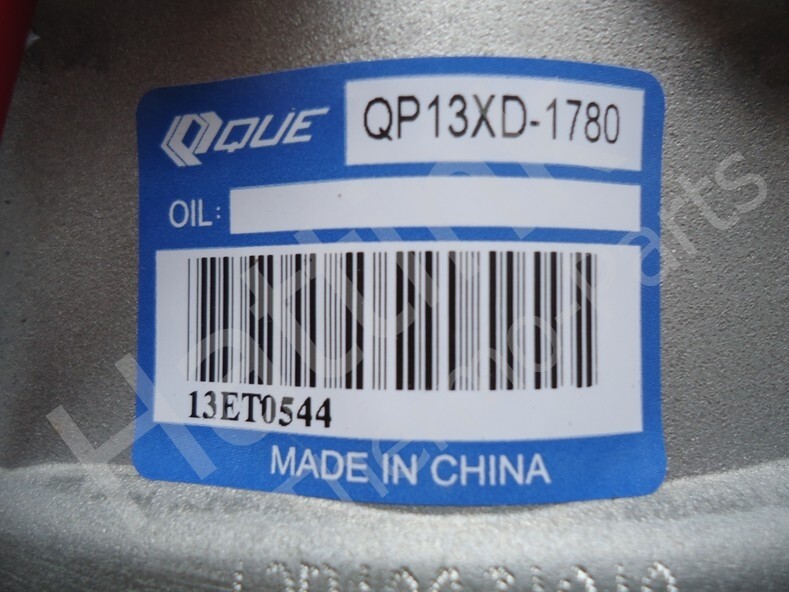

Description on compressor:
QP13xd-1780
Made in China
Net 7400 grams
Compressor
Air conditioning pump TCCi/Tcci air conditioning pump
Air conditioning pump QP13XS-1780/ Air conditioning pump QP13XS 1780
Air conditioning compressor QP13XS-1780 / Air conditioning compressor QP13XS 1780
AC pump QP13XS-1780 AC compressor QP13XS-1780
Air conditioning pump QP13XD-1780/ Air conditioning pump QP13XD 1780
Air conditioning compressor QP13XD-1780 / Air conditioning compressor QP13XD 1780
AC pump QP13XD-1780 AC compressor QP13XD-1780
