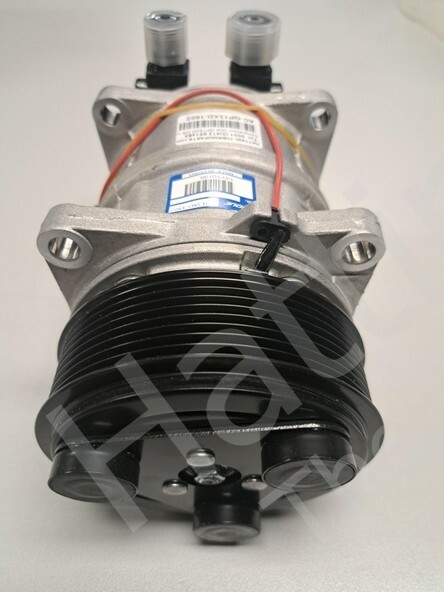

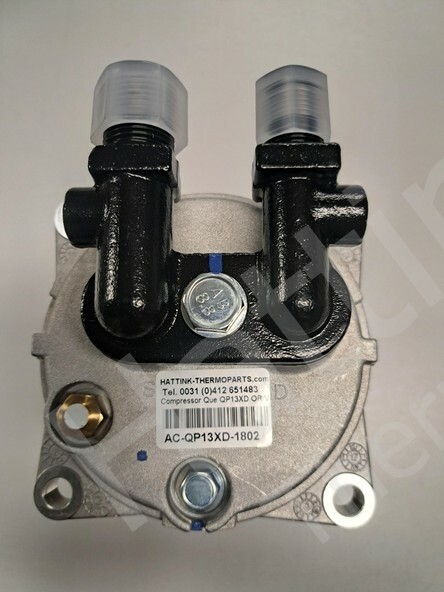

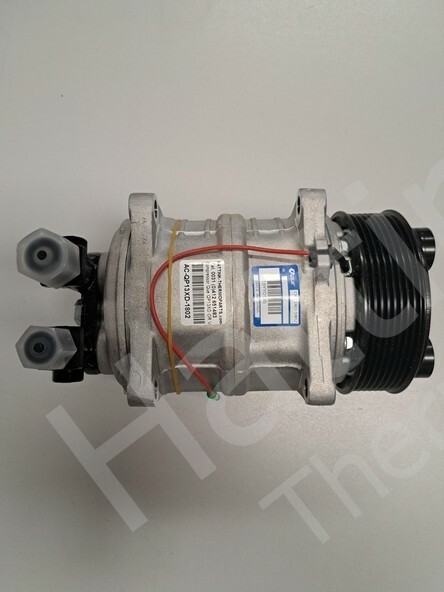

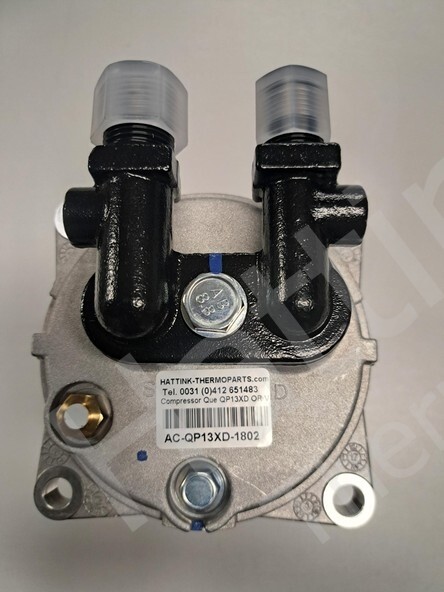

AC pump / Air conditioning compressor
NB!!! No oil in compressor included
QP13XD Air conditioning pump Que
Compressors 12V:
Description Air conditioning Compressor:
AC Compressor: QP13XD
Interchangeable for TM13XD
Coupling Type: 3-Eye
Voltage: 12 Volt DC
Ø119mm 8 Poly-V
Compressor info:
Capacity: 131cc
Refrigerant: (XS) R134A/R404a
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole/Hole 104mm
Cylinders: 6
Rotation CW/CCW
Clutch/Cluts info:
Pulley at groove: Ø119mm
Voltage: 12V DC
Consumption: 45 Watts 3.75 amps
Connection: 1x wire + side / Ground is Body
Number of grooves: 8 Poly-V
Groove size: 3.56 mm
Speed range: 700-6000 RPM
Refrigeration connection: O-ring Vertical
Oil type: According to vehicle specification
Possibly
See Order accessories
Air conditioning Car/Truck R134a inst.: AC-80813043
Carrier Transicold R134a/R404a :AC-656009500 (1L)
Thermo-King R134a/R404a :HP-203-513 (1L)
Amount of oil filled
should be: 150ml
W (mm) 46.5mm
C (mm) 83.3mm

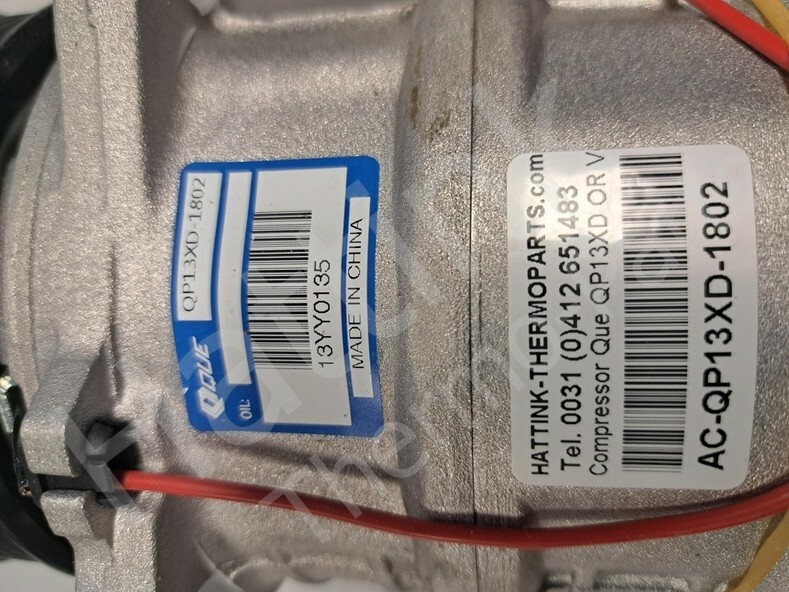

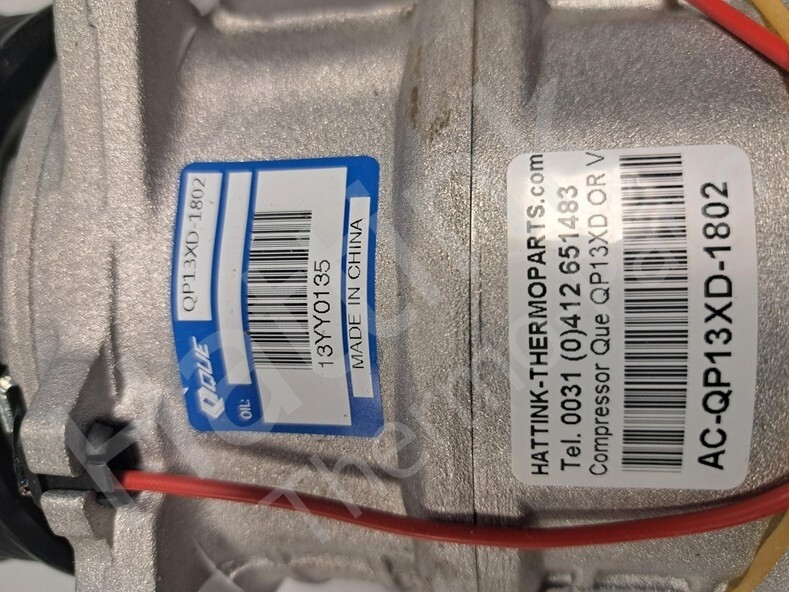

Description on item:
Logo QUE
QP13XD-1802
Made in China
7100 grams
Descriptions and adjustments below
and applications various article codes
It is forbidden to copy bottom texts
QP-13HD/QP13HD/QP-13XD
QP13XDQP-13HD/QP13HD
Compressor
OE CO-6095CAXD/CO6095CAXD
