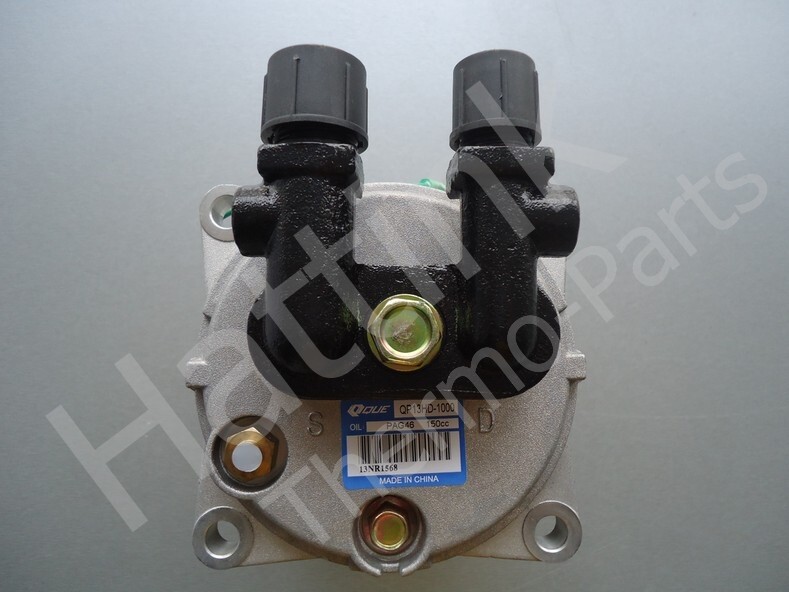

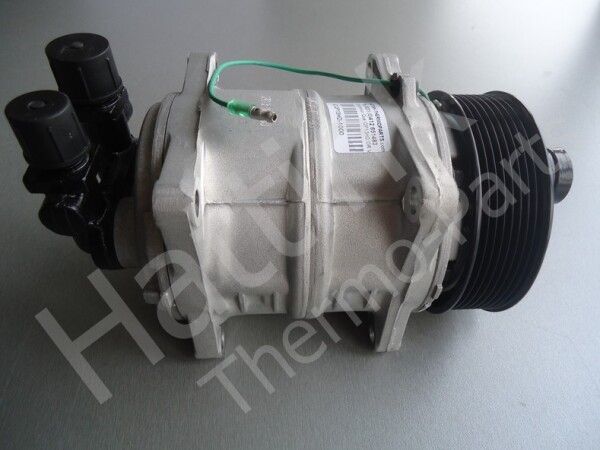

Description QP13HD OR Vert. 24V Ø119mm Poly-V8
Displacement 131 cc
N° Cylindres 6
Refrigerant R134a
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 150 cc
RPM Max. 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise
Suction fitting :(G10) 7/8" 14UNF
Discharge fitting :(G8) 3/4" 16UNF
Koppeling Type: 3-Eye
Pulley Diameter Ø125mm (5"1/4)
Voltage 24V
Number of grooves 2 "A"
Section Groove (S) 12,7 mm
Fittings O.Ring
B (mm) 53,9 mm
C (mm) 83 mm
Description on Article:
Que
Made in China
Compressor 1000

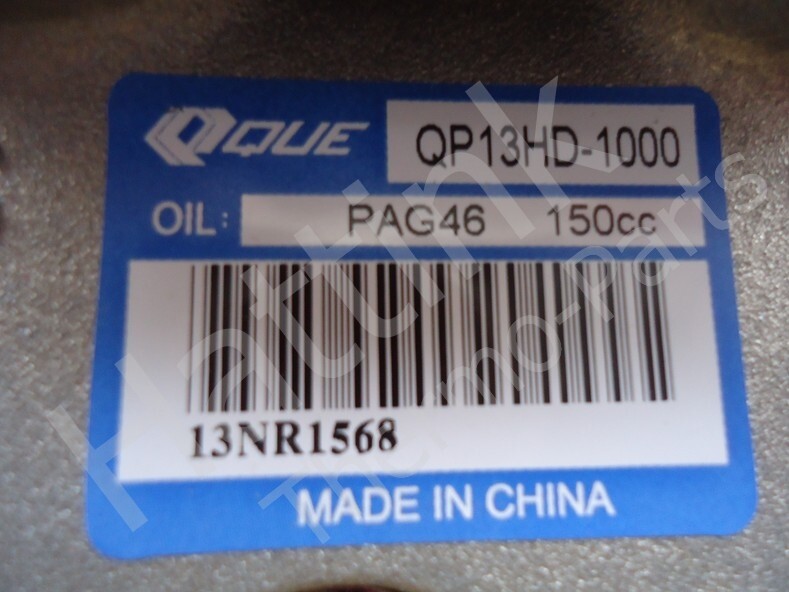

QP13HD-1000
Oil 150CM³
Netto 7,4 Kg.
Applications and Examples or
Names and product codes:
