This part is interchangeable but not original Carrier. Mentioned names, numbers as well as OE, descriptions or article numbers of manufacturers or material brands are only mentioned as a reference and description. In such a case, this does not mean in any way that these parts are original parts from the manufacturers in question. You can of course also buy this from the listed registered trademark dealer or you can order it from us.
Note no oil in Compressor

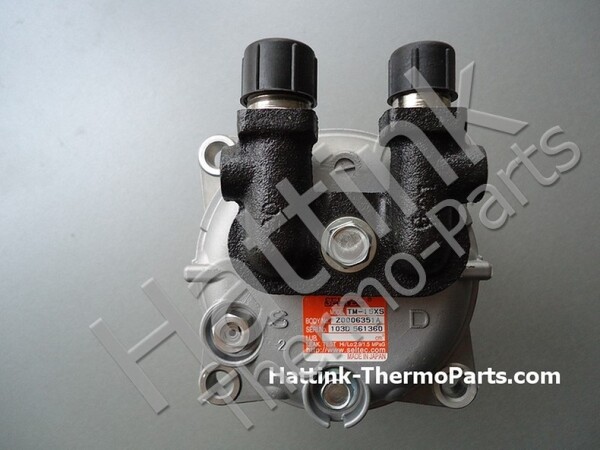

Is normally supplied with Pad connection (without pipe connection)
with us it is supplied with Connection O-Ring Vertical or with
O-ring Horizontal or rotolock connection
You must then transfer your old pipe connection to the new
For Carrier unit :
Xarios 300
Xarios 300 05RY
Xarios 300 07
Xarios 300 RY
Xarios 350
Xarios 350 05
Xarios 350Mt
Xarios 350Mt 05
Carrier Description Article:

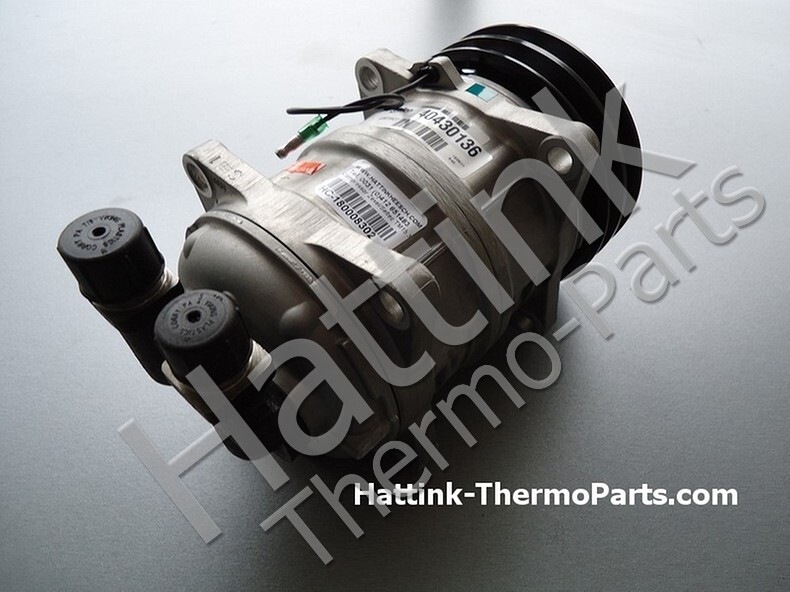

Compressor TM15 12V
Compressor TM15 12V, 2A Groove 135MM
Carrier Transicold nr.
18-10157-13
Old Artikelcode Carrier®:
18-00083-01
18-00083-02
18-00083-03
18-00074-00
18-10157-02
18-10157-00

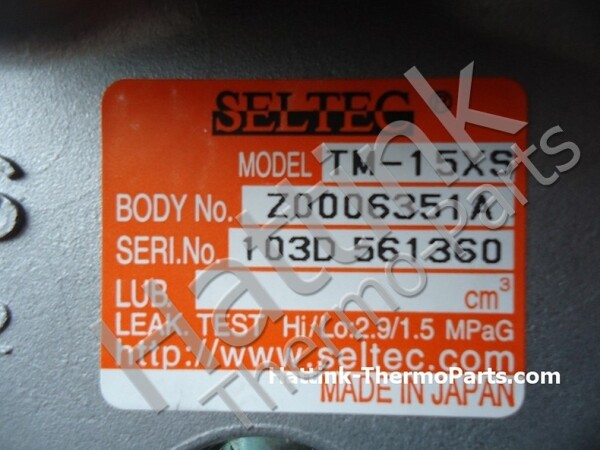

Description on Article:
Seltec Model TM-15XS
Body no. Z0006351A
Leak test Hi/Lo:2.9/1.5 MPaG
Made in Japan
Netto 7400 gram
Description:
TM 15 XS OR Rotolock Horizontal 12V 5" 2G A

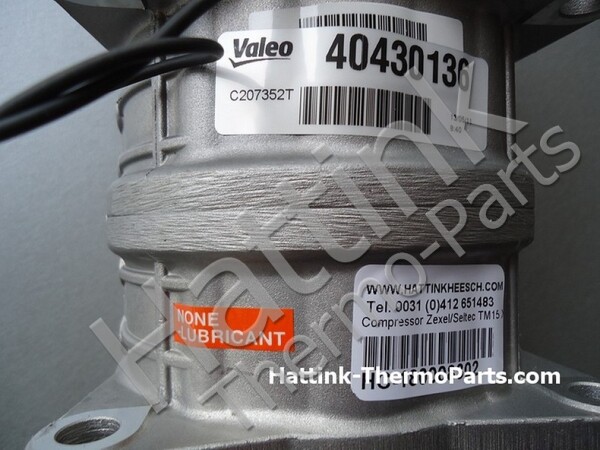

Note oilless
Displacement 146,7 cc
N° Cylindres 6
Refrigerant R404a
Oil Type Eartic 68 (or Equiv.)
Oil Quantity 150 cc
RPM MAXIMUM 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise
Suction fitting 1" 14UNS
Discharge fitting 1" 14UNS

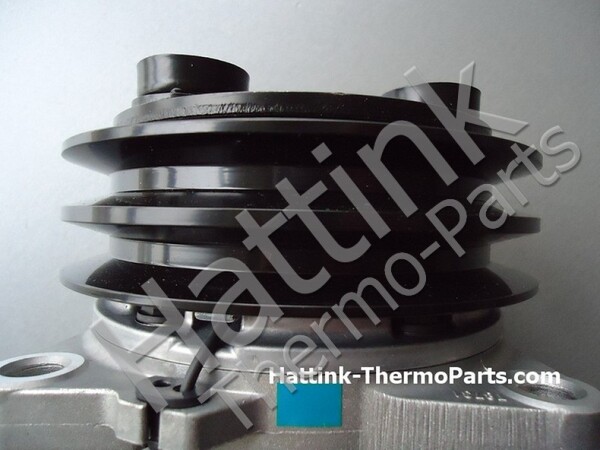

Pulley Diameter Ø 125 mm
Voltage 12V
Number of grooves 2
Groove type A
Section Groove (S) 12,7 mm
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
Carrier Compressor
Xarios-300/HTP©/Xarios300
Xarios-300 05RY/H.TP©/Xarios300-05RY
Xarios-300 07/HT.P©/Xarios300-07
Xarios-300 RY/HTP.©/Xarios300RY
Xarios-350/HTP©/Xarios350
Xarios-350 05/H.T.P©/Xarios350-05
Xarios-350 Mt/HTP©/Xarios350Mt
Xarios-350Mt/HTP©/Xarios350 Mt
Xarios-350-Mt/HTP©/Xarios350-Mt
Xarios-350 Mt 05/H.T.P.©/Xarios350-05Mt
18-00083-02/HTP.©/180008302
C18-00083-02/HTP.©/C180008302
C 18-00083-02/HTP.©/C 180008302
C-18-00083-02/HTP.©/C-180008302
WWW-HATTINK-tHERMOpARTS.COM
18-10157-13/HTP.©/18-10157-13
C18-10157-13/HTP.©/C181015713
C 18-10157-13/HTP.©/C 181015713
C-18-10157-13/HTP.©/C-181015713
18-00083-01/HTP.©/180008301
C18-00083-01/HTP.©/C180008301
C 18-00083-01/HTP.©/C 180008301
C-18-00083-01/HTP.©/C-180008301
18-00083-03/HTP.©/180008303
C18-00083-03/HTP.©/C180008303
C 18-00083-03/HTP.©/C 180008303
C-18-00083-03/HTP.©/C-180008303
HC-18-10157-02/HC-181015702
HC-18-10157-00/HC-181015700
