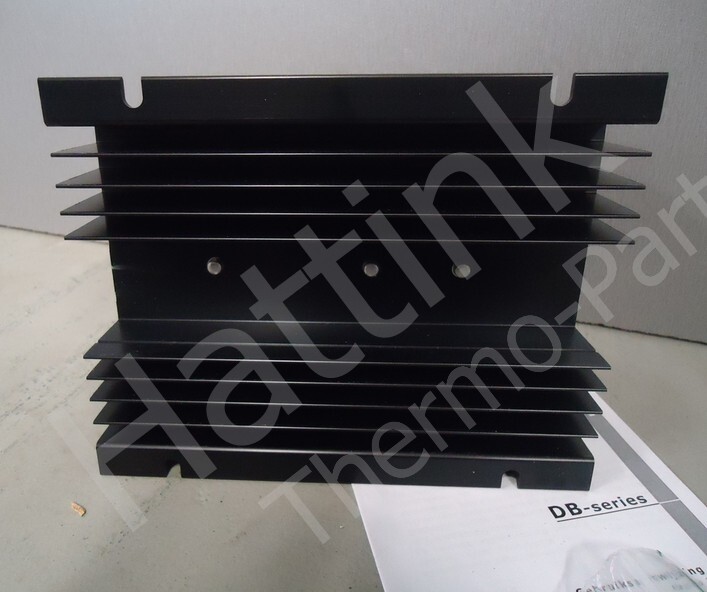

The Xenteq battery isolators from the DB series
ensure a perfect separation
between multiple batteries without them being discharged by consumers.
could be. Thus, multiple batteries can be charged by dynamo
(or charger) without the batteries influencing each other.
These charge current distributors are low-loss. For example, with a full 100Ah battery
with an input voltage of 13.8 volts, the voltage drop is only 0.005 volts.
The DB 270 is suitable for 3 batteries / groups
batteries / groups. Both charging current distributors are suitable for 12 and 24 volts
systems. The batteries may be different in capacity.
The maximum (charging / alternator) current is 90 Amps. If the charging current distributor
more heavily loaded, it will be irreparably damaged. To a higher
To achieve current, two charging current distributors of the same type can be parallel
can be switched. The maximum charging current is thus doubled to 180
Amps.
The maximum input voltage is 32 volts. If this tension is
exceeded, the charging current distributor will also be irreparably damaged
Instructions
Mount the charging current distributor in a cool place, not in the immediate vicinity
of the engine or other equipment that gives off heat.
The ambient temperature has a major influence on the power of the
charging current distributor can. See table on page 8 Use the
to connect
If you do not have the disposal
on the dynamo
has the D + connection, you can use the D +
of the charging current distributor to
the ignition switch.
This Xenteq Type DB 270 is
Suitable for 12/24 Vdc
Max. charging current 90 Amp.
Max. input voltage voltage 32 Vdc
Number of outputs 3
Low loss Yes (0.005Volts.)
Ideal ambient temperature 5 - 20 ° C
Connections 4x M8 bolts
and 2x 6.3mm amp slide
Dimensions in cm. 10x12.5x6.5 cm
Weight 1 kg
Advice the diagram below for cable thickness and length
Max. Charging current Cable length up to
1 m.
Cable length up to 2 meters
Max. Charging current 1Meter 2Meter
40 Amps 6 mmq 16mmq
50 Amps 10mmq 16mmq
60 Amps 10mmq 25mmq
70 Amps 16mmq 25mmq
80 Amps 16mmq 35mmq
90 Amps 16mmq 35mmq
D + wire 1 mmq
Perfect separation between 2 or 3 batteries
charging batteries simultaneously but the
batteries can't discharge each other
With active voltage compensation

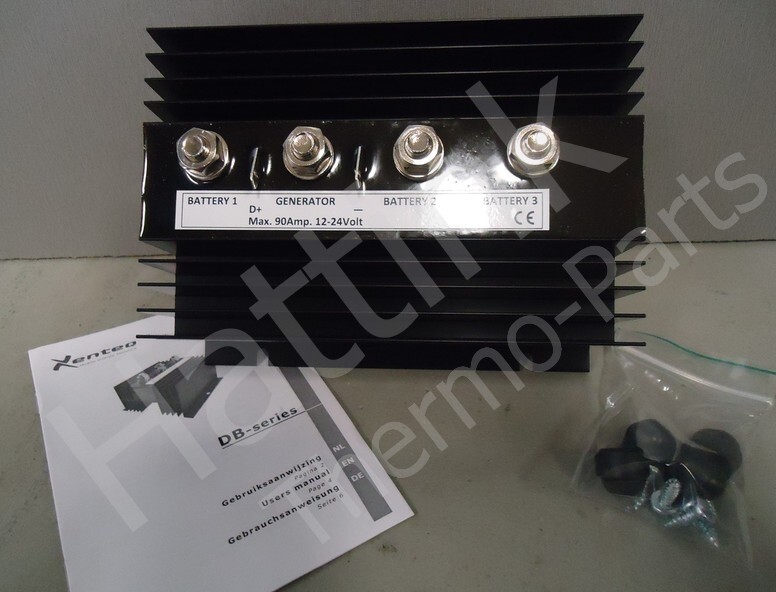

Description on Article:

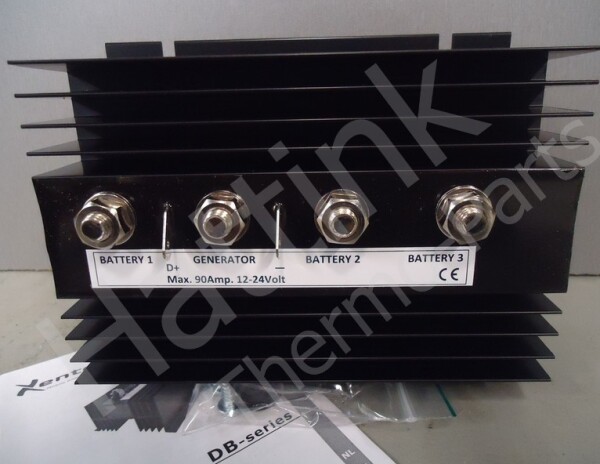

Battery 1 Generator Battery 2 Battery 3
Max 90 Amp

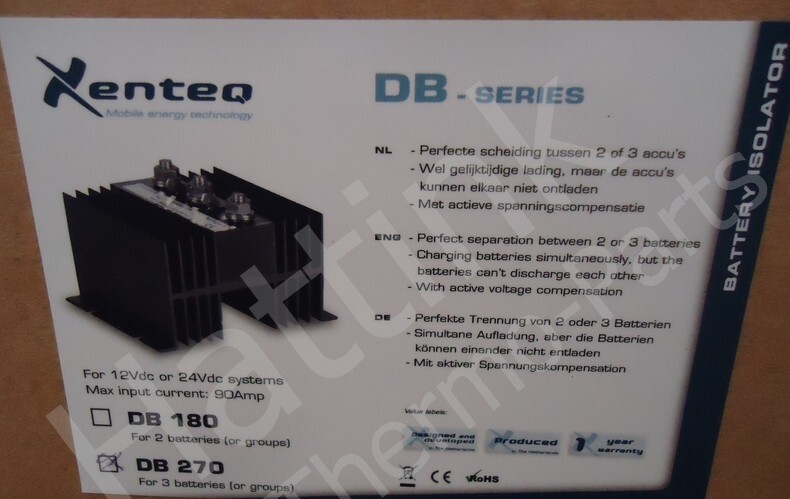

Description on packaging:
Xenteq
DB Series
Battery Isolator
For 12Vdc or 24 Vdc systems
Max input current 90 Amp
DB 270
Applications and Examples or
Names and product codes:
