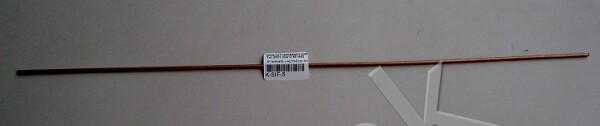

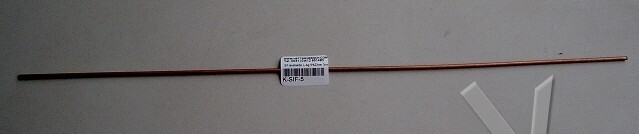

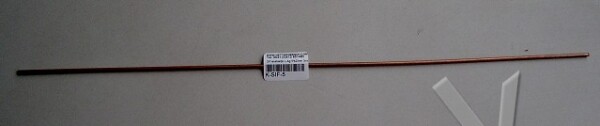

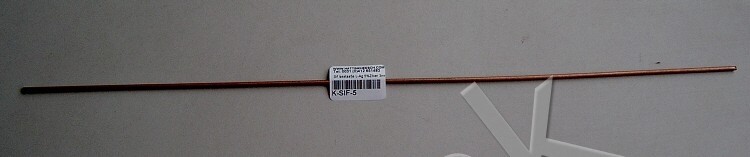

Braze rod per bar 50cm long around 3mm
Type: L-A 5 SN 3mm
Silver Cadmium free braze
With 5% silver addition.
Information / info:
* Can be used for copper / copper solder connections.
* Can be used for brass / copper solder connections using
Flux FX5000.
* Assemble mechanical parts.
* For sanitary facilities, air conditioning, cooling, heating.
Piping medical fluids solder connections.
Usage tips
* Recommended soldering clearance: 0.1mm / 0.15mm
* Cleaning the solder surfaces.
* Remove deletion and delete ocsied
Possibly Sanding with sandpaper or steel wool.
* Heat the parts to be connected.
Approximately between 750-850 degrees.
* Then melt the rod between the connecting parts.
* After cooling clean cleaner with water due to residues.
(Residues are generally a substance that remains after chemical reaction or mechanical processing.)
Precautions.
* Do not smoke and do not breathe the solder in
Solder in well-ventilated areas or
Use respiratory equipment.
* Wear protective clothing and gloves.
* In case of accident or illness, consult a doctor immediately
Note: Castolin
Art.no. 38105
Argent 5%
Melting temperature: 750-850 ° C
Made in France
Weight: 28 Gram Net.
