Stainless steel bollard Type Achil 150
Brand Vetus bollard
Bollard with maximum safety
load capacity of 1800 kgf

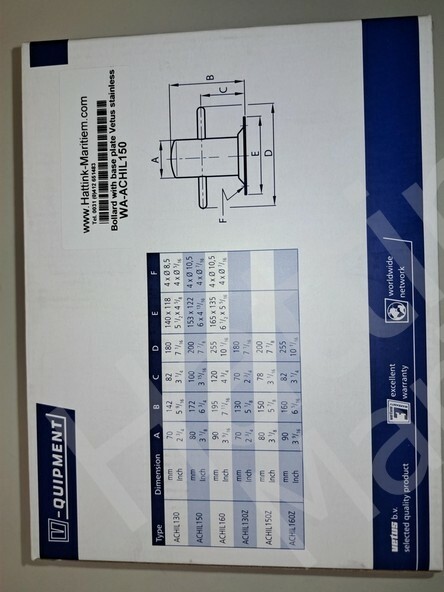

Description on packaging:
Bollard
Type Achil
Achil150
AISI 316 Stainless Steel
High Quality Finish
Maximum Safe Working Load 1800 kg
A. Dia: 80mm /31/8 Inch
B. Height: 172mm / 6 3/4 Inches
C. Pin Height: 100mm / 3 15/16 Inches
D. Total length with pin: 200mm / 7 7/8
E. Mounting plate length: 153x 122 mm / 6x 4 13/16
F. Mounting plate hole size: 4x 10.5mm / 4x 7/16 Inch
Descriptions and adjustments below
and applications various article codes
It is forbidden to copy bottom texts
Stainless steel boder/stainless steel Bollard A4/weld Bollard
Is mounted as an extra bollard at the front of the bow or in the middle of Vissers Jacht MK1250
Bollrd Vetus/ Vetus Bolder
