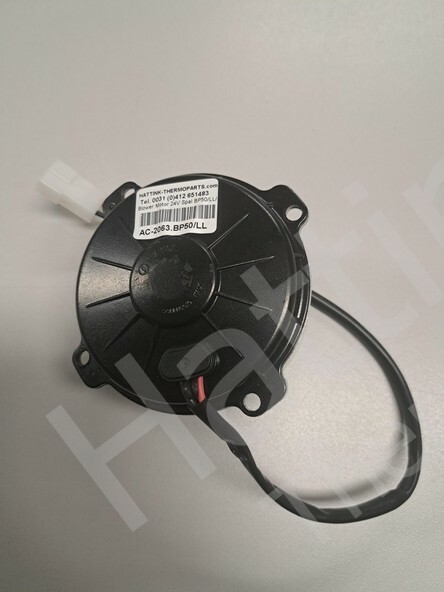

Separate motor 24V
Spal Fan 24V
24V Fan Axial Waterproof
SpaL fan/blower IP68 protection.
BP50/LL
Max. Voltage 26V
Electric consumption (A)7.8 A
Voltage 24V
Dia motor 101 mm
Dia motor widest side 126mm
Height from mounting edge 44.5 mm
Total height 76.7 mm

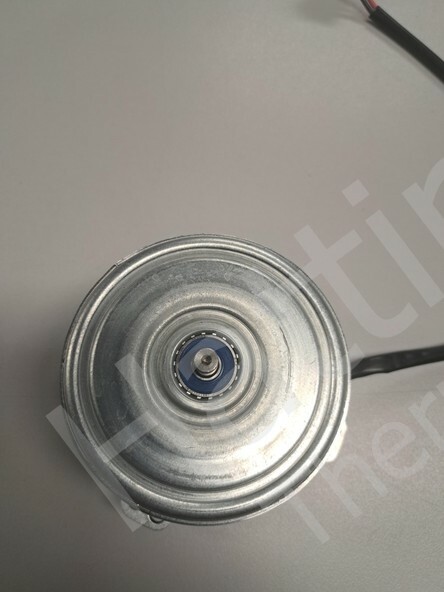

Axle size: 8.05 mm
Length Axis measured from the bearing 12. mm

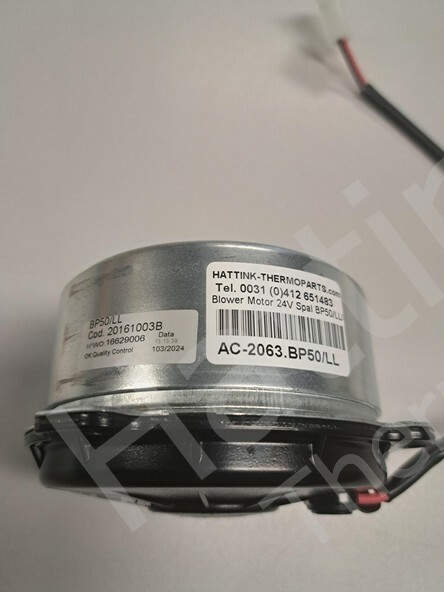

Description on item:
BP50/LL
Cod. 20161003B
Made in Italy
Net 1185 grams
OE20161003B AC-20161003B
SPAL ENGINE 20161003B
