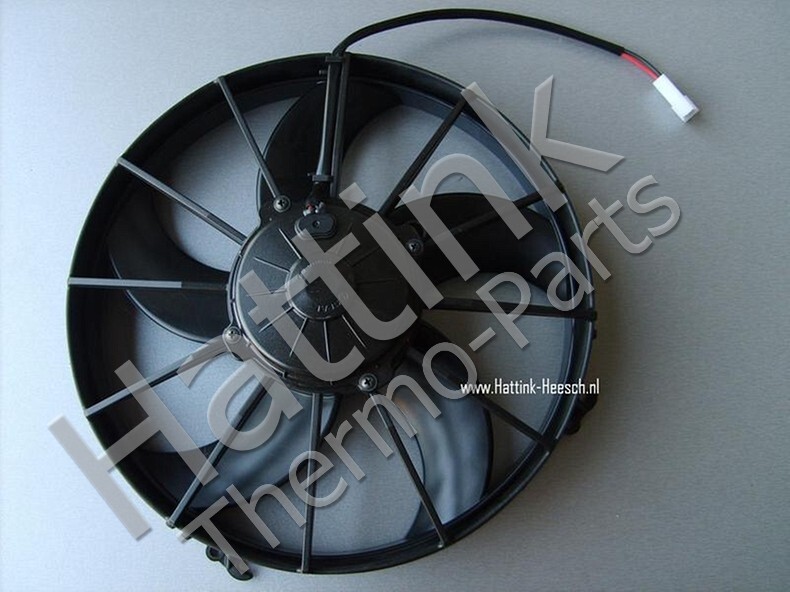

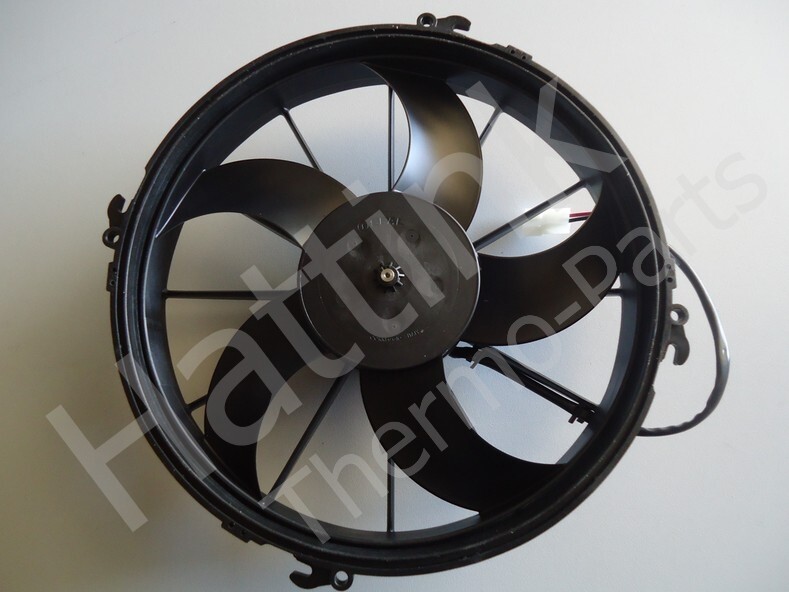

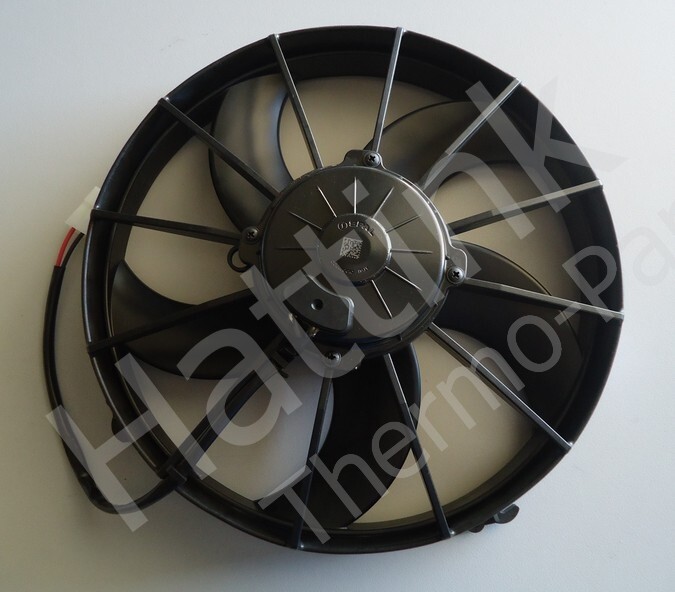

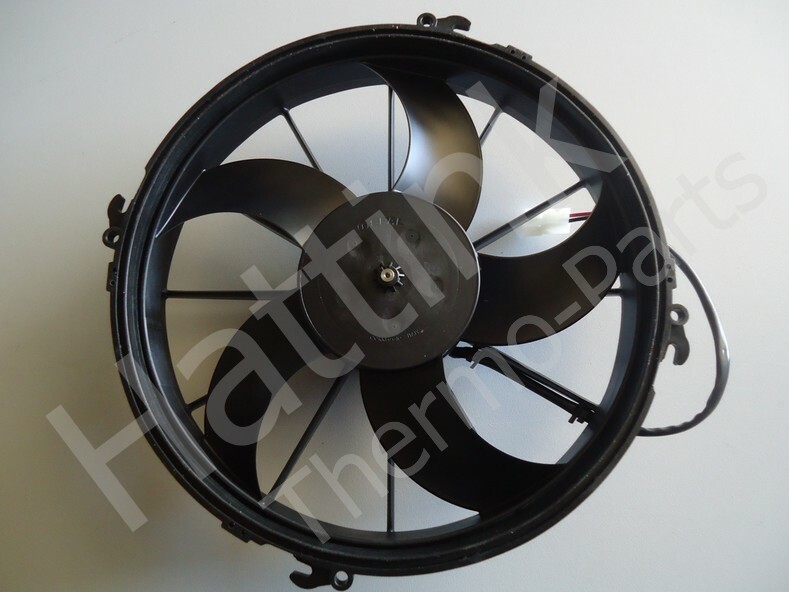

Spal Condenser Fan/Blower
code VA01BP70/LL-43S
Spal Fan/Blower Kenvekta
Ø 305 mm Blowing VA01-BP70/LL43S
Proof tension 26V
Electric consumption (A) 7,2 A
Air flow (m3/h) 2600 m³/h
Voltage 24V
Type Fan Blowing
Thickness 95 mm
Diameter Ø 305 mm
New Spal Code VA01-BP70/LL-43S
Old Spal Code VA01-BP1-43S
Spal productor Code 3010.2541
Duct Diameter 330 mm
OE 0028304808 / 282101004 / A0028304808 / H11001257
Spal Fans Nederland

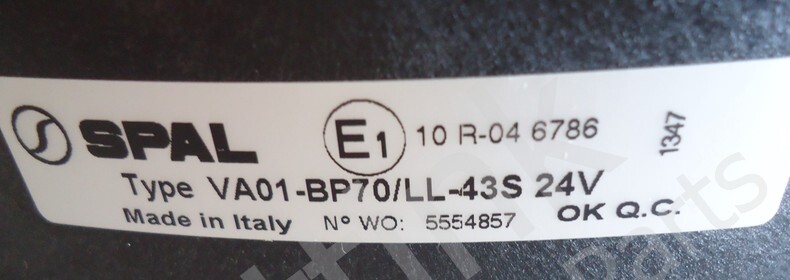

Description on Article:

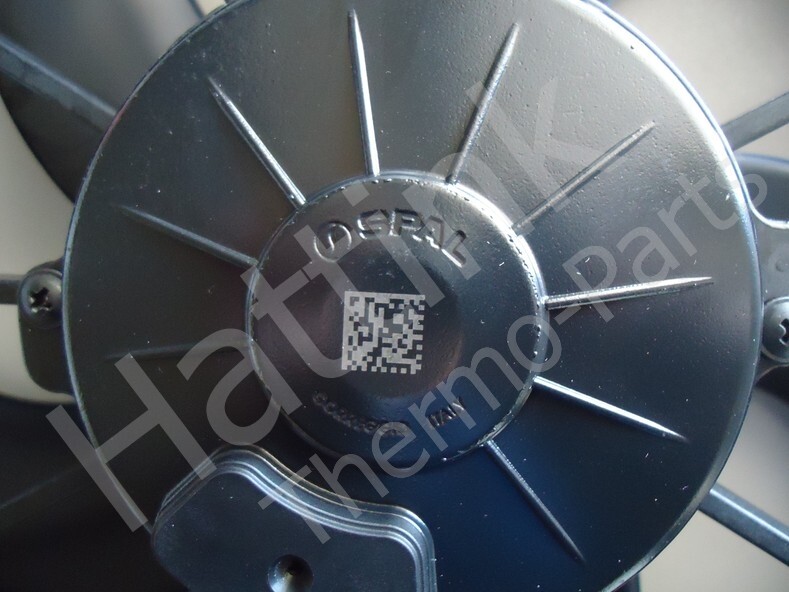

Logo Spal
Type VA01-BP70/LL-43S 24V
E1 10 R-04 6786
Made in Italy
Netto 2392 gram
Technical specifications:
AC-3010.2541.pdf
Spal type comparison:
Spal Type VA01.pdf
