Drinking water pump Jabsco

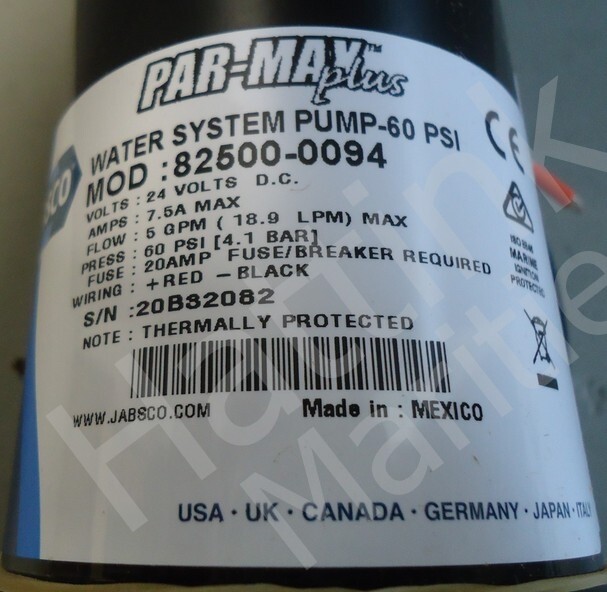

Description on item:
Model: 82500-0094
Volts:24 Volts DC
AMPS: 7.5A Max
Flow 5 GPM (18.pLPM) Max.
Press: 60 PSI (4.1 Bar)
Fuse: 20 AMP Fuse/Breaker Required
Wiring : + Red / - Black
Note: Thermally Protected
Made in Mexico
Info :
Par Max 1.9' Pressure Controlled Pump
24 Volt DC
This product is now obsolete.
The details provided here are for informational purposes only.
Replacement Item: 31295-3524-3A - Par Max 2 Pressure Controlled Pump
Connections: for 13mm (½”)
bore hose or Hep20 push-fit connectors CW193
Dimensions: 230mm long, 152mm wide, 110mm high
Fuse Size: 5 (amp)
Maximum current: 2 (amperes)
Output: 7 liters/minute (1.5 gallons/minute) open flow
PRESSURE SWITCH - cuts in at 1.0 bar (15 psi) - cuts out at 1.7 bar (25 psi)
High-flow, efficient, self-priming pump for 2 or more outlets
Multi-diaphragm design self-fills up to 1.8m vertical lift, can run dry without damage
Supplied with snap-in ports for hose or Hep20 connectors
Walk calmly
Motor protected by automatic thermal overload shutdown
Includes bypass function for smooth, quiet flow. No accumulator tank required
Actual weight: 1.60 kg (about 2.10 kg packed)
